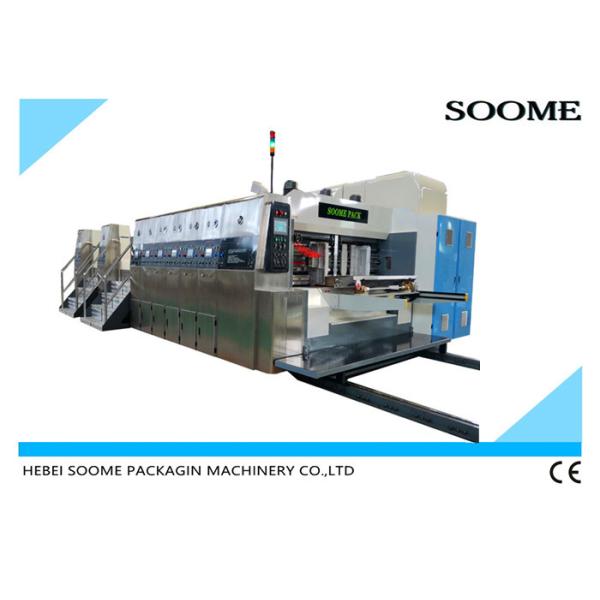

Flexo Ink Printing Die Cutting 260pcs/Min Stack Machine

QYKW-1224 High Speed Flexo Ink Printing Die Cutting Stack Machine

Technical index:

Whole machine characteristics:
The whole machine is designed according to the high demand reliablity function and safety production ,selects the high quality meterial and accessories, all the drive rollers adopts high quality steel materals. It adopts the computer to control the storage order with changing the lists quick and convenient.All of the transmission gears and rollers adopt good quality steel with heat treatment and grinding.All drive rollers are high quality steel, hard chrome plated, surface grinding.The wall plate is high quality steel, which is processed by CNC machining center after stress removal.Paint spraying process: before painting, parts through the de-rusting - phosphating - spray - paint - baking paint, so that the paint rust, hard surface, paint more durable

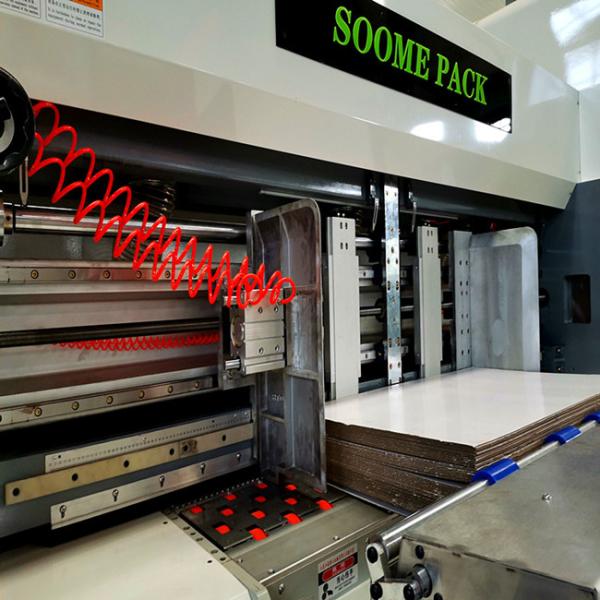

Feedding unit:
leading edge feed paper, increase fan flow, so that high speed and low speed feed paper more accurate.Manually adjust the feeding stroke to reduce the pressure of the paperboard pull roller. The frequency converter adjusts the air volume and controls the vacuum air flow and pressure to match the board size. From the front positioning, reduce feed error, improve feeding and slotting accuracyStable at high speed, reduce noise and mechanical vibration.The position of the left and right baffles is controlled by computer and electric digital control (screw displacement). Adopt the Guangdong lead edge feeder , it can feed the paper continuously or by partition with the counting device.

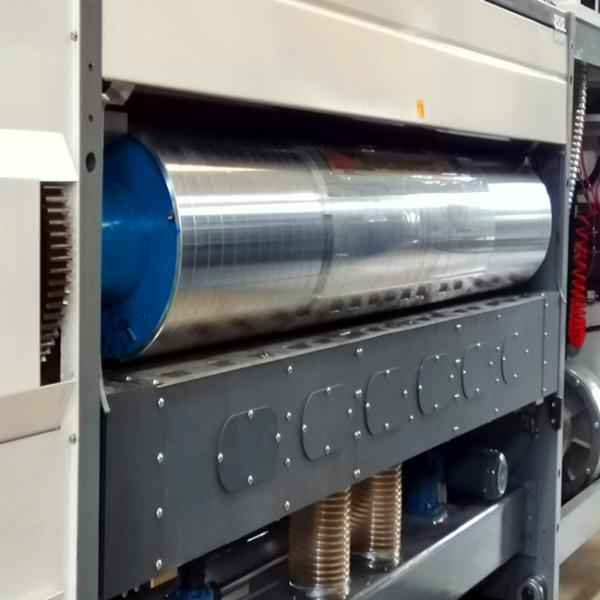

Printing unit:
The outside diameter of the printing roller is 390mm. Printing roller for high quality steel, surface grinding, hard chrome plating. Balance correction, smooth operation. Scroll mount plate, with both sides of the lock device, so that mount plate alignment is accurate. Full version of the hanging flexo plate groove. Loading and unloading printing board, foot switch electric control positive and negative rotation. Adopt domestic high quality doctor balde system. Doctor blade inner cavity possess anticorrosive function, it adopt the long shore to Support and through consistent air bag device install near the anilox roller to ensure the doctor blade contact with anilox roller evenly to achieve high precision and DPI printing.
Heating unit:
Vacuum transmission ensure printed paperboard smooth delivery.Quickly heat paperbaord after printing, it improves the machine speed and printing quality effectlively. It prevents dust from slotting and die cutting enter into printing unit. Adopt infrared drying method. Independent drying infrared ray system, infrared radiation can be controlled by controlling the parameters of the infrared device to control heating time and heating area. Dry area is divided into tparts to adjust and can be adjusted according to need using range, saving energy. According to the need of electric regulation workbench and clearance of drying system, the adjusting range is 0 to 12 mm)
Convey bridge unit:
Vacuum transmission ensure printed paperboard smooth delivery.Install axial fan above, with the help of the wind effect to shorten the drying time ink/varnish.According to the need of electric regulation workbench and clearance of drying system, the adjusting range is 0 to 12 mm)
Varnish unit rubber roller with ceramic anilox roller .The outside diameter of the printing roller is 390mm. Printing roller for high quality steel, surface grinding, hard chrome plating. Balance correction, smooth operation. Scroll mount plate, with both sides of the lock device, so that mount plate alignment is accurate.

260pcs/Min Stack Machine

Flexo Ink Printing Stack Machine

37kw Stack Machine

Flexo Ink Printing Die Cutting 260pcs/Min Stack Machine Images
