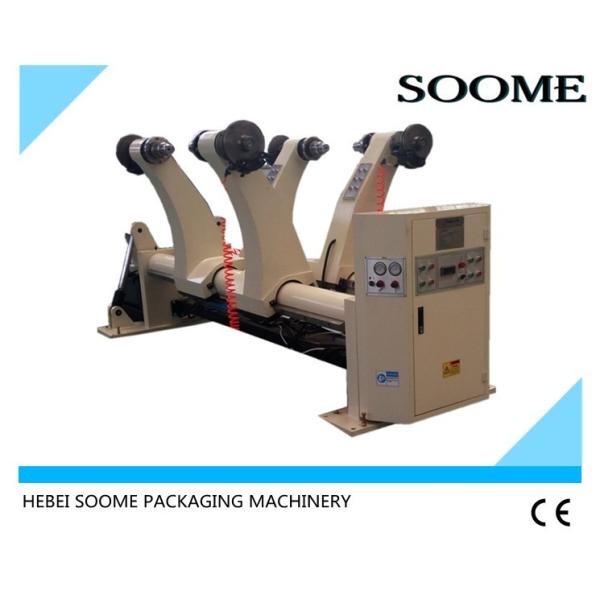

Stainless Steel Corrugated Cardboard Production Line Hydraulic Mill Roll Stand

Name: Stainless Steel Corrugated Cardboard Production Line Hydraulic Mill Roll Stand
Brand: SOOME
Price: 1 USD

Quality Stainless Steel Corrugated Cardboard Production Line Hydraulic Mill Roll Stand for sale

Brand Name : SOOME

Model Number : SMZJ

Certification : CE

Place of Origin : China Hebei Dongguang

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 set / month

Delivery Time : 25 days

Packaging Details : Wooden or plastic * 20”container or shipping LCL

Color : Customer’s request

Feature : Safe and reliable

Usage : For sheet paper

Paper size : 1400-2500mm

Warranty : 1 year

After-sales : Engineer available to service machinery

Contact Now

Stainless Steel Corrugated Cardboard Production Line Hydraulic Mill Roll Stand

Hydraulic Mill Roll Stand Corrugated Cardboard Box Production Line Packaging Machine

Technical Parameters

1. Base paper diameter:Ø400mm-Ø1500mm

2. Max. load: 3000kg

3. Main shaft dia. : Ø 215mm

Hydraulic system parameters

1. Working pressure(MPa): 12－16 MPa

2. Hydraulic cylinder scope(swing): Ø 100mm×460mm

3. Hydraulic cylinder dia.(clamp):Ø 63mm×720mm

Structure and Features

1. Symmetrical structure can install two bundles base paper, to change paper with non-stop.

2. Adopt hydraulic drive, can make the base paper lift, clamp, loosen, move and center.

3. Head of paper clamping part with mechanical expansion design.

4. Tension control adopt pneumatic brake, manual control and also can be on-line controlled together with paper receiving part.

Raw material and Origin

1. Principal axis of holder and arm lock: high quality seamless steel pipe Origin: Chengdu

2. Wallboard of two sides:Q235A welded sheets Origin: Handan

3. Arm lock: HT200 casting Origin: Hebei

4. Electric elements: CHINT/Schneider

5. Girder connected box iron: Tangshan

Dia.of paper roller	Φ1500mm	Φ1600mm
Work width	1400mm,1600mm,1800mm	2000mm,2200mm,2500mm
Loading Weight	3.5T	5T
Braking	Single-point Dual-point Multi-point

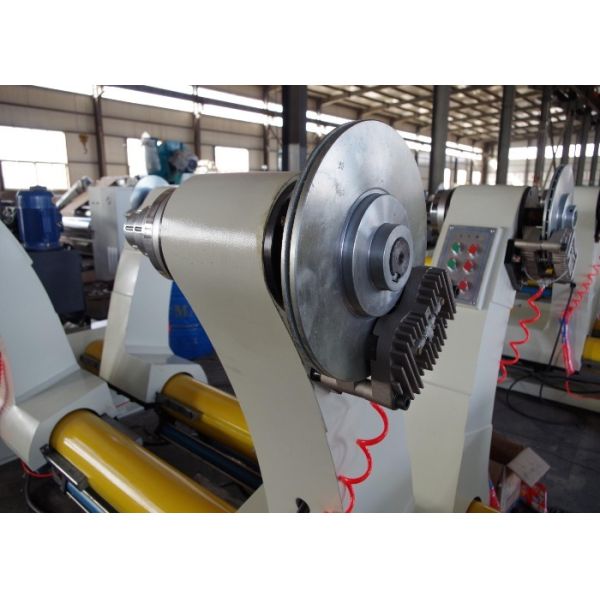

Stainless Steel Corrugated Cardboard Production Line Hydraulic Mill Roll Stand
