2000 type Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box

Name: 2000 type Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box
Brand: SOOME
Price: 1 USD

Quality 2000 type Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box for sale

Brand Name : SOOME

Model Number : 2000

Certification : CE Certification

Place of Origin : Hebei Province China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 per /mounth

Delivery Time : 25 after depoist

Packaging Details : Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box packing by wooden case and filling with plastic film

Condition : New

Voltage : 380V 440V

Weight : 2T

Cutting speed : 60pcs/min

Packaging type : Cartons,Case,Film

Automatic grade : semi-auto

Cutting precision : 0.075 mm

Driven type : Electric

Application : Medical,Chemical

Warranty : 1 Year

Contact Now

Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box

1. Chain paper feeding mode, double side gear set position, ensure the accuracy of paper feeding.
2. Die-cutting roll 360 degree electric adjustment, digital display, and electronic counter.
3. High frequency processing of the whole gear, spray-type automatic lubrication, greatly improving the operation accuracy and service life.
4. High quality steel, internal tempering, surface grinding, hard chromium plating, and dynamic balance correction, smooth operation.
5. Die-cutting rubber cushion imported by CUE Company of the United States is easy to install and change, smooth edge of die-cutting tool, service life can reach 12 million times, greatly reducing production costs.
6. Die-cutting rubber cushion roller adopts mechanical transverse moving device, about 40 mm, and controlled by pneumatic device. The tool mould moves up and down to prolong the service life of rubber cushion.
7. Automatic linear velocity compensation, uniform wear and tear of high-strength rubber pad, and equipped with rubber pad repair system, rubber pad can be repaired many times.
8. Template-free die-cutting function can be added.

Tecnical index:

Model	Unit	2000 1200* 2200 2500	2000 1400*2200 2500	2000 1600*2200 2500
Max. Paper Feeding Size	mm	1250*2300 2600	1450*2300 2600	1650*2300 2600
Min. Paper Feeding Size	mm	350*650	350*650	400*650
Max. Die Cutting Size	mm	1200*2150 2450	1400*2150 2450	1600* 2150 2450
The Thickness OF The Cardboarrd	mm	2-8	2-8	2-8
Max. Speed	pcs/min	60	60	60

2000 type Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box

Product Tags:

cardboard manufacturing machine

corrugated box manufacturing machine

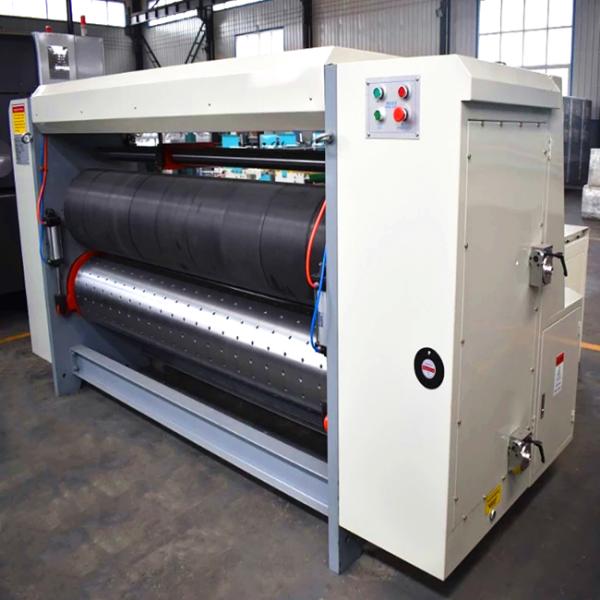

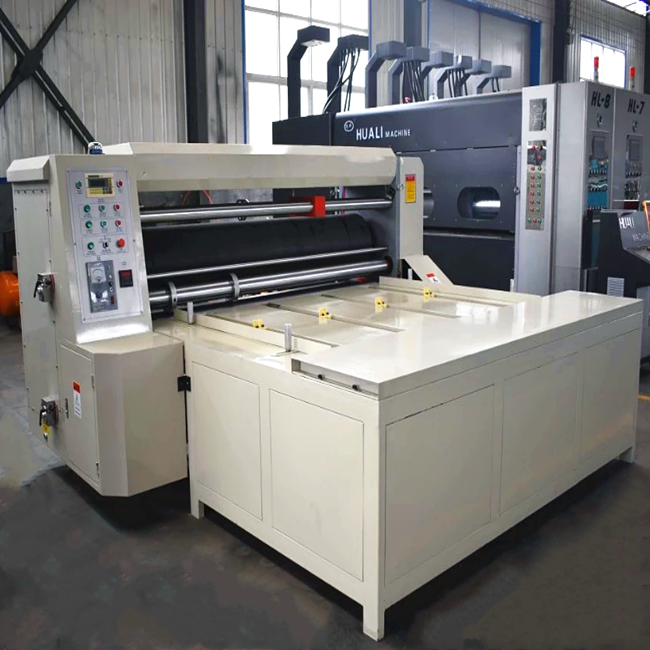

2000 type Chian Feeding Creasing Die Cutting Machine Making Corrugated Carton Box Images
